Phase angle controller for heavy industry up to 25A and 500V
Available in IP20 or IP54
Request quotation

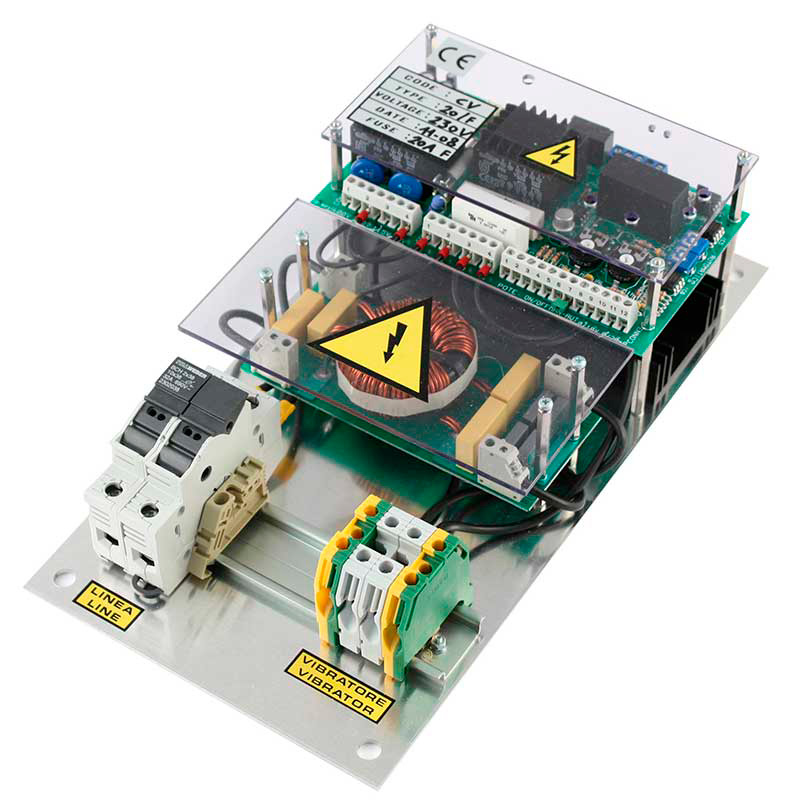

CV25 is a professional phase angle controller at 25A, with double insulation to avoid interferences from external signals. It also has automatic input 0/10V 4/20mA from PLC. There is also the possibility of having an amplitude sensor to keep the vibration constant without spikes (model CVFS).
Application: Conveyor automation in heavy industry up to 25A and 500V.
| Max Output Current [A] | 25 |
|---|---|
| Input Voltage [V] | 230/400, up to 500 |
| Vibration Frequency [Hz] | 50/100 or 60/120 |
| Output Voltage [V] | 40-210 or 100-380 |
| Stabilized vs Input Voltage | Yes |
| Soft Start [s] | 0.1, 1 |
| ON/OFF | 0-24V, Dry contact |
| Automatic Input PLC | 0-10V/4-20mA |
| Working Temperature | -20/55°C (-4/131°F) |
| Enclosure | Circuit, Metal |
| Protection Index [IP] | IP00, IP55 |
| Standard Conformity | CE, EMC, Rohs |
| Amplitude Sensor | No, SInd2 |
| File Name | Visualize | Download |
|---|---|---|
| SP_CV25-17_ENG_2020 | ||
| SP_CV25FS_ENG_2020 |
