Description
Application: Conveyor and assembly automation in packaging and dosing industry. Linear vibrating feeder and vibratory bowl feeder up to 15A. Perfect for markets with different Hz without mechanical tuning.

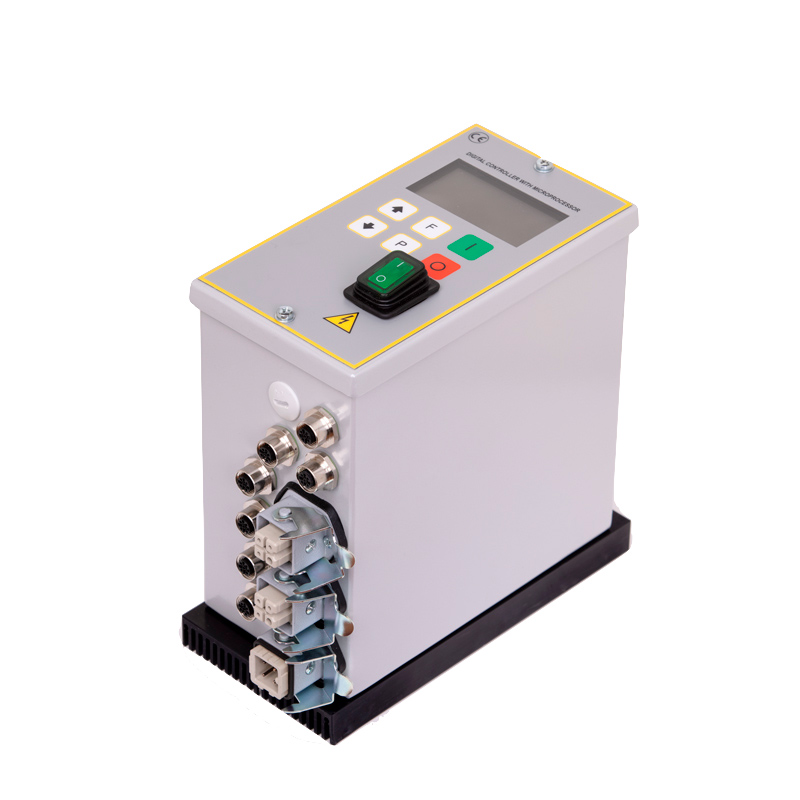

FQNDIG
FQNDIG is a frequency controller up to 15A, with the possibility to add the amplitude sensor SIND3
Request quotation
Additional information
| Max Output Current [A] | 10, 15, 6 |
|---|---|
| Input Voltage [V] | 230 |
| Vibration Frequency [Hz] | 5-140 |
| Output Voltage [V] | 40-210 |
| Stabilized vs Input Voltage | Yes |
| Soft Start [s] | 0-10 |
| ON/OFF | 0-24V, Dry contact |
| Automatic Input PLC | 0-10V/4-20mA |
| Working Temperature | -20/55°C (-4/131°F) |
| Enclosure | Aluminum |
| Protection Index [IP] | IP55 |
| Standard Conformity | CE, EMC, Rohs |
| Overflow Control | PNP/24V/Dry Contact |
| T_on/T_off/T_Alarm | 0-20/0-20/0-20 |
| Switch Off Time Air-Valve [s] | 0-2 |
| Amplitude Sensor | No, Sind3 |
Documents
| File Name | Visualize | Download |
|---|---|---|
| SP_FQ1NG_ENG_2020 | ||
| SP_FQ2N-DIG_ENG_2020 |
