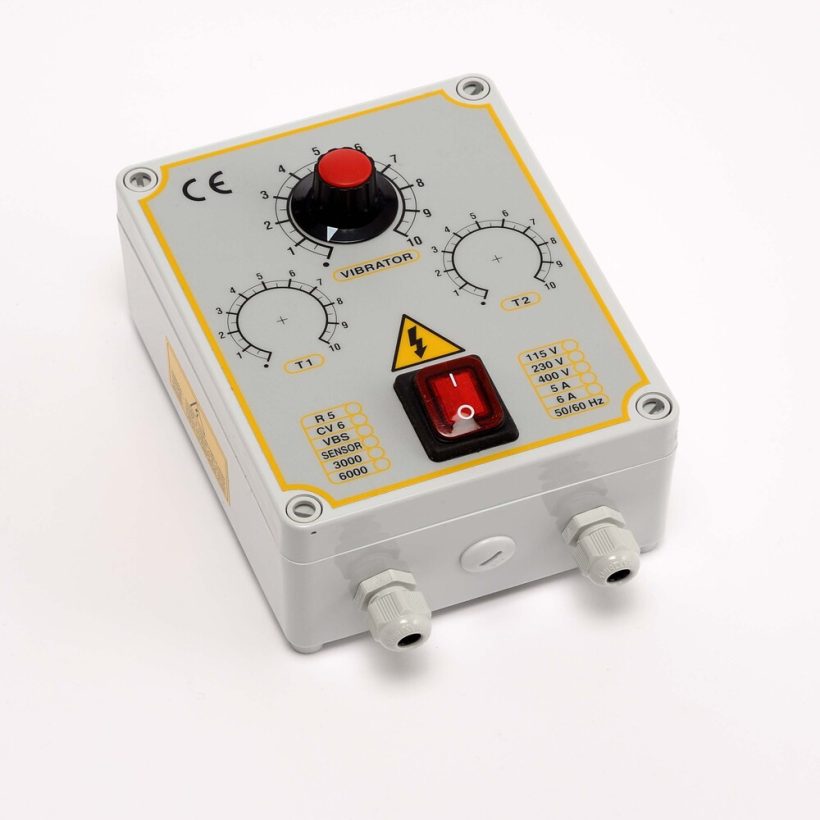

Compact phase angle controller for light industry 5A 115/230V
Request quotation
R5FC is a compact and easy-to-use phase angle controller. The maximum current is 5 A. it is possible to add NPN/PNP sensor and customizable label.
Application: Conveyor and assembly automation in packaging and dosing industry. Small linear and bowl feeders till 5 A
| Max Output Current [A] | 6 |
|---|---|
| Input Voltage [V] | 115/230 |
| Vibration Frequency [Hz] | 50/100 or 60/120 |
| Output Voltage [V] | 20-105 or 40-210 |
| Stabilized vs Input Voltage | Yes |
| Soft Start [s] | 0.2, 2 |
| ON/OFF | 0-24V, Dry contact |
| Working Temperature | -20/55°C (-4/131°F) |
| Enclosure | Aluminum, Circuit, DIN35 Circuit, Plastic |
| Protection Index [IP] | IP00, IP20, IP55, IP65 |
| Standard Conformity | CE, EMC, Rohs |
| Opto-isolation | No, Yes |
| Timer Delay | No, Yes |
| File Name | Visualize | Download |
|---|---|---|
| SP_R5FC_ENG_2020 | ||
| SP_R5FC-ISO_ENG_2020 |
